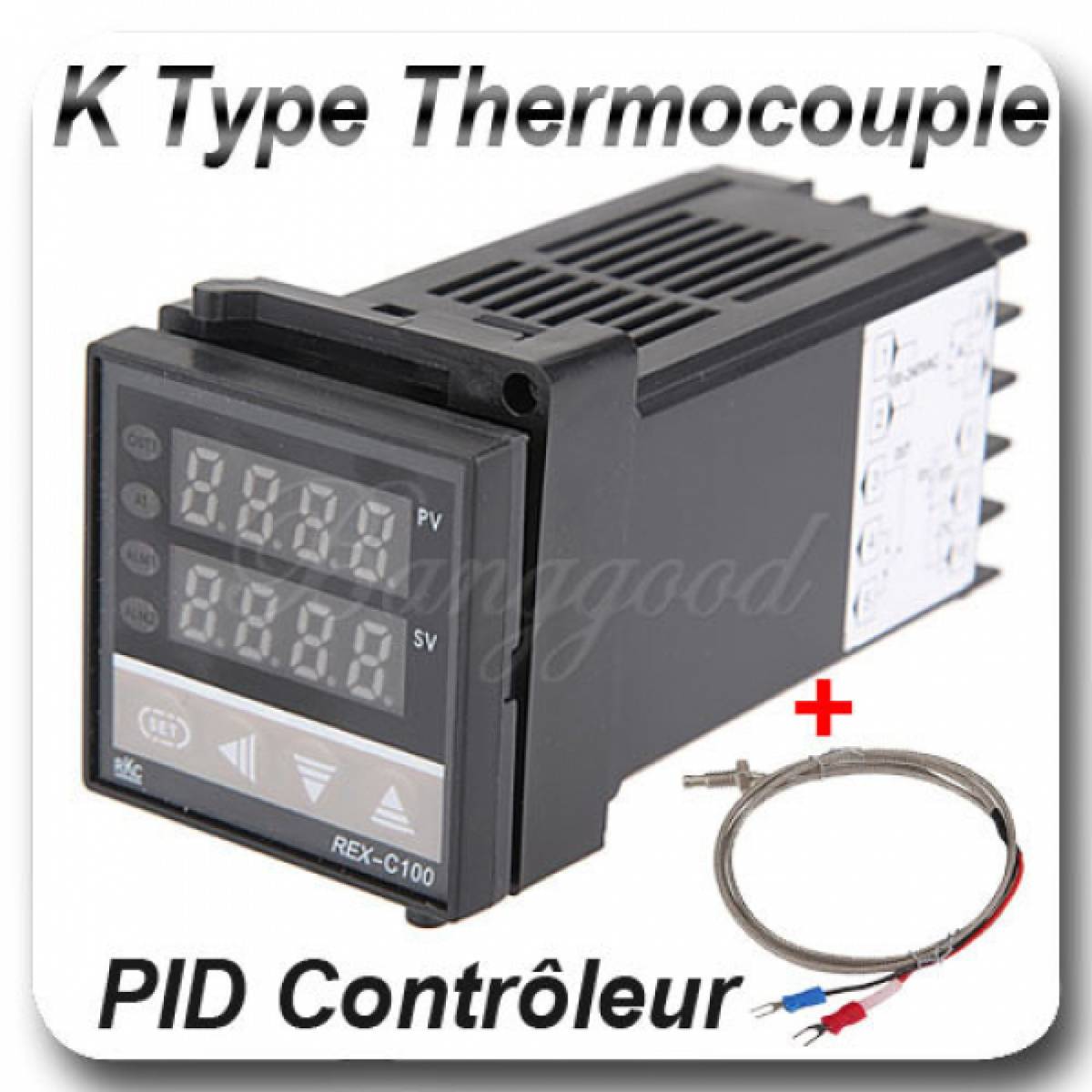

Digitalni termostat REX-C100 220V PID sa sondom 400+C

Izuzetno svestran termostat koji se koristi u pekarama, brizganju i preradi plastike, raznim pećima na razna goriva, homebrew projektima DPF čistaćima itd. . . .
Može raditi i u ON/OFF sustavu ili PID sustavu.
Posjeduje alarmni izlaz koji se može koristiti kao dodatni neovisni termostat. . . .
Termostate mogu isporučiti već podešene za vašu namjenu, prilažem uputu na hrvatskom jeziku i shemu spajanja.

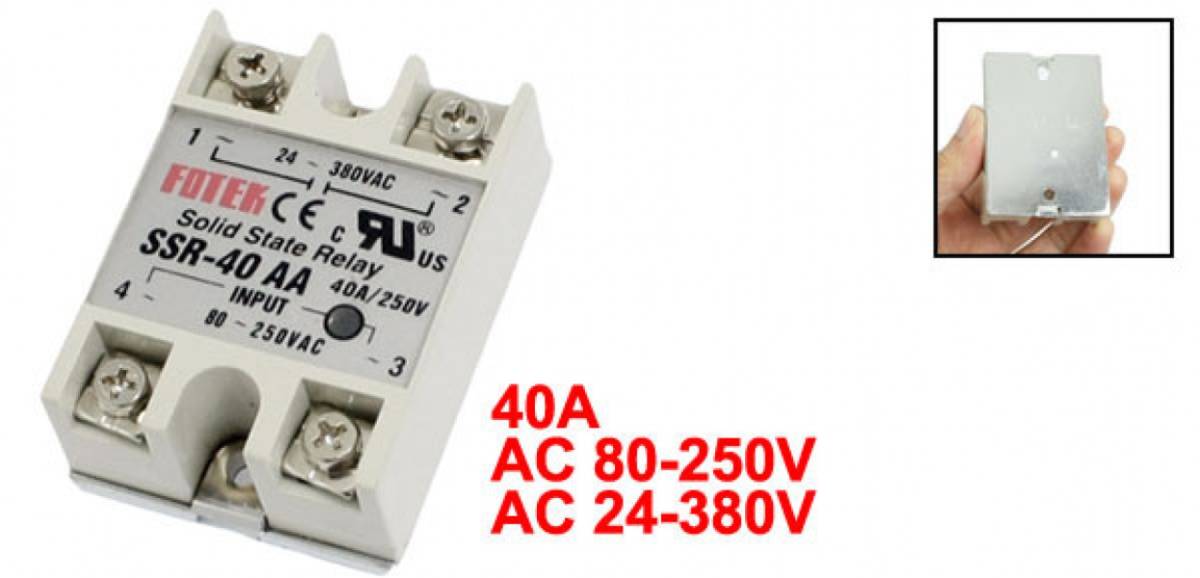

Dostupni modeli sa SSR ili sa relejnim izlazomMogućnost posebne kupovine samo sonde ili samo termostata bez sonde.
K-type sonda = 30kn komadMoguće ih je koristiti i sa PT-100 ili K-type M8 sondama koje imam u ponudi po 60kn/kom.
U ponudi imam cijeli seriju REX termostata: C100, C400, C410, C700 i C900Features: Measuring accuracy: ±0. 5%FS Cold-end compensation tolerance: ±2℃（can be modified by software in 0~50℃） Resolution: 14 bit Sampling cycle: 0. 5 Sec Dimensions:48 x 48 x 110 (mm) ±0. 2mm Process value (PV), Setting value (SV) Output, alarm and self-tuning can be indicated by: LED PIN control (including ON/OFF, step-type PID and continuous PID) Self-tuning control Relay output: contact capacity 250V AC 3A (resistive load) Alarm function output: 1 way Contact capacity of output: 250V AC 3A (resistive load) Setting value (SV): identical to measuring range (PV) Proportional band (P): 0~full range (ON/OFF control when set to 0) Integral time (I): 0~3600 sec (No integral action when set to 0) Derivative time (D): 0~3600 sec (No derivative action when set to 0) Heat-reset proportional cycle: 1~100 sec Detective temperature range：0 to 400℃ Insulation resistance: >50M ohm(500V DC) Insulation resistance: 1500V AC/min Power Consumption: 10 VA Service environment: 0~50℃, environment with no corrosive gas 30~85% RHšaljem dostavom po želji o trošku kupca ili osobno preuzimanjeako se šalje preporučenom poštom uz avansno plaćanje na račun poštarina je 10kn Ako se šalje preporučenom poštom + plaćanje pouzećem cijena slanja je cca 30knlink sa uputamahttp://www. rkcinst. co. jp/english/pdf_manual/imnzc17e3. pdf
